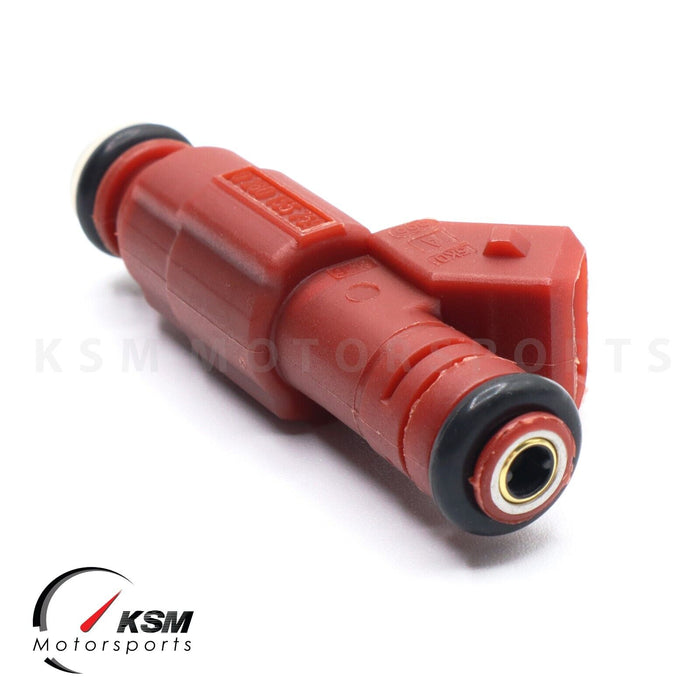

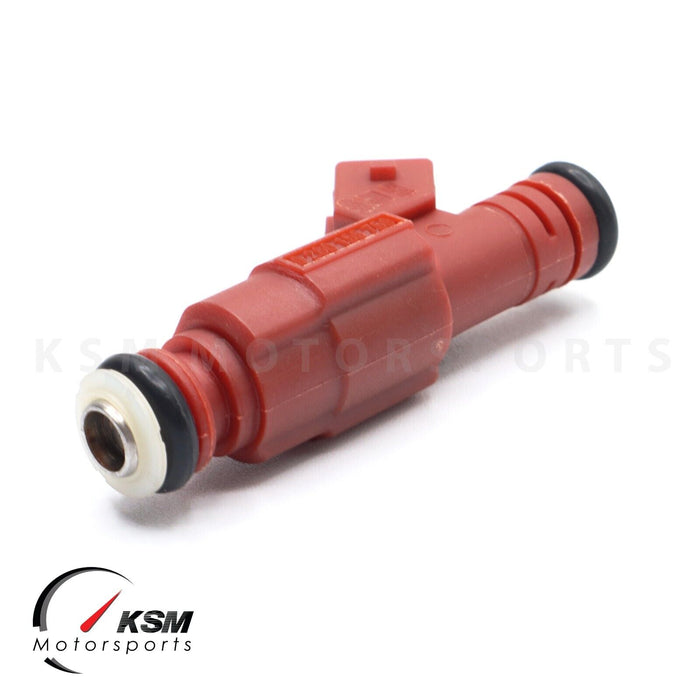

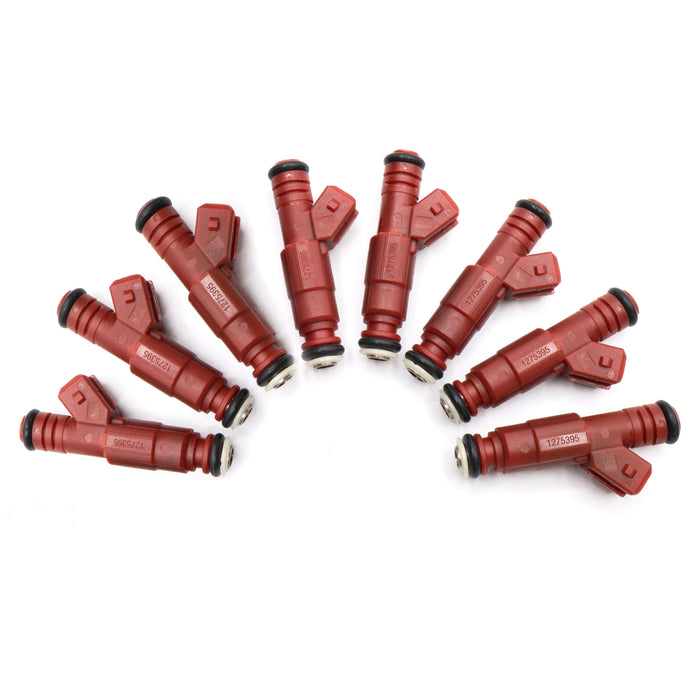

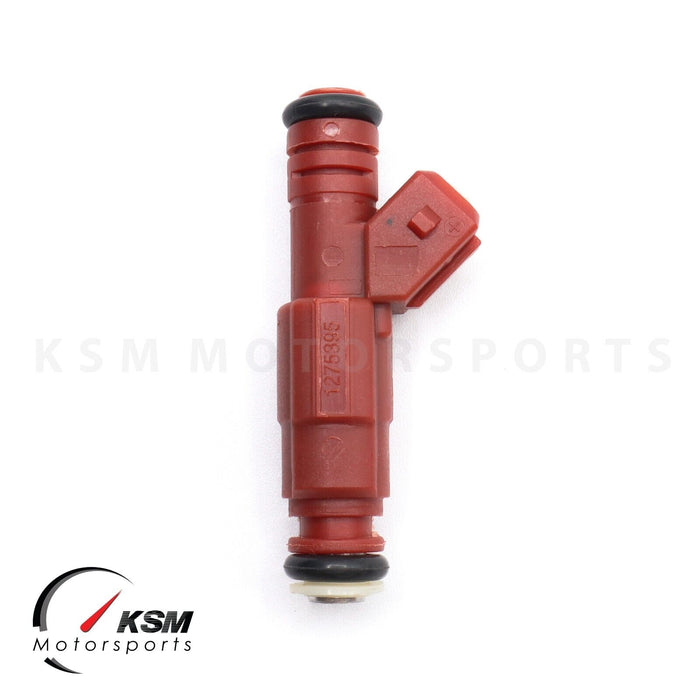

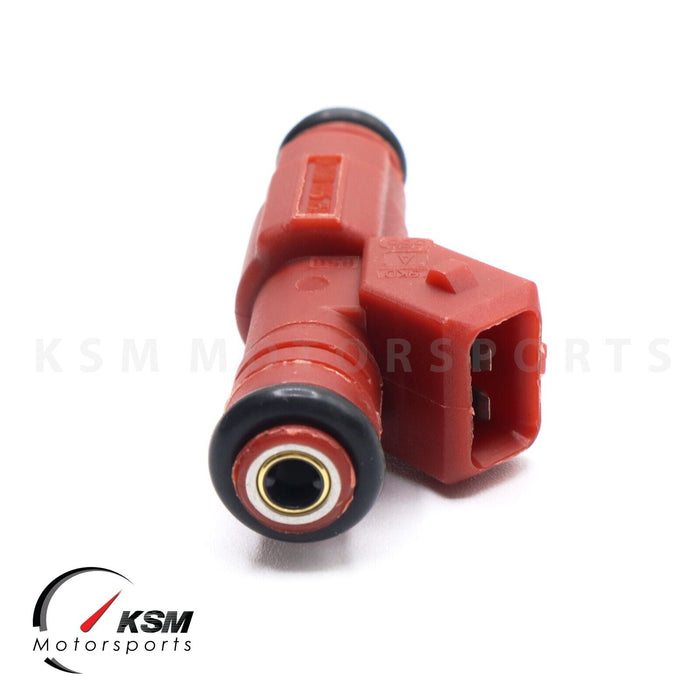

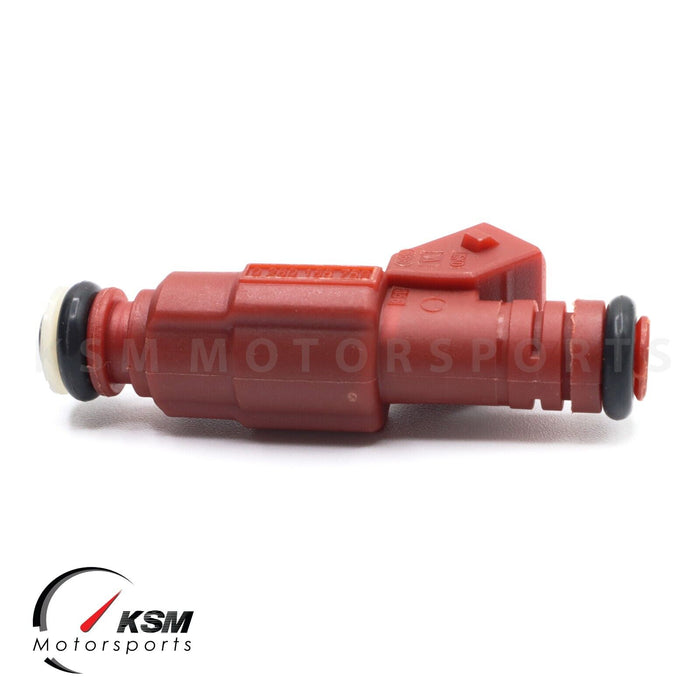

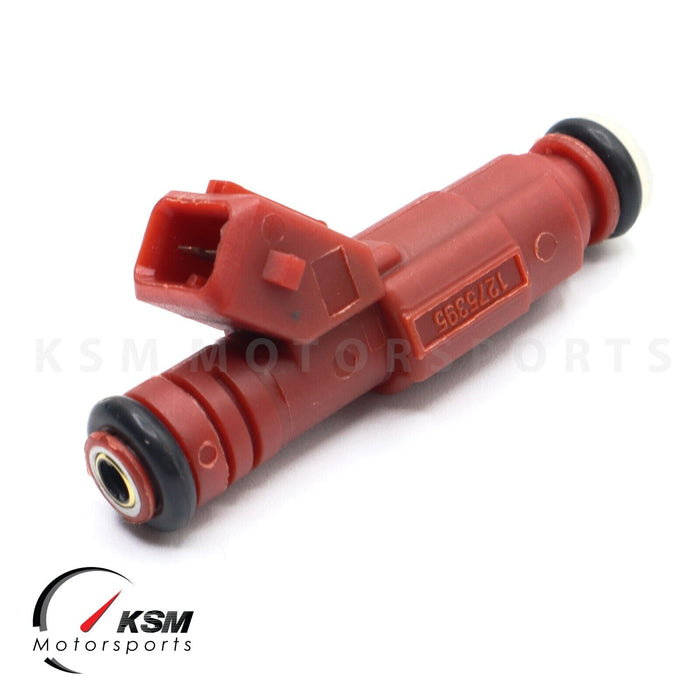

8 x 30lb RED Fuel Injectors Racing Type For Mustang V8 4.6L 5.0L 5.4L EV1 Style

Manufacturer part number: 280155759

Original price $198.00 - Original price $198.00
Original price
$198.00
$198.00 - $198.00
Current price $198.00

8 x 30lb RED Fuel Injectors Racing Type For Mustang V8 4.6L 5.0L 5.4L EV1 Style

Details

  • Manufacturer Part Number: 0280155759
  • Compatible part numbers: 0280150945, 0280155831, M-9593-BB302
  • Manufactured with precision to meet OE standards; Easy installation
  • The fuel injector has been 100% tested and exactly match the internal coil resistance and fuel flow rate of OEM fuel injectors
  • Pressure/Leak tested, Spray/Flow Tested
  • Condition: 100% Brand New
  • Quantity: pieces
  • Design: Fit Bosch GEN III EV1 Style Fuel Injector

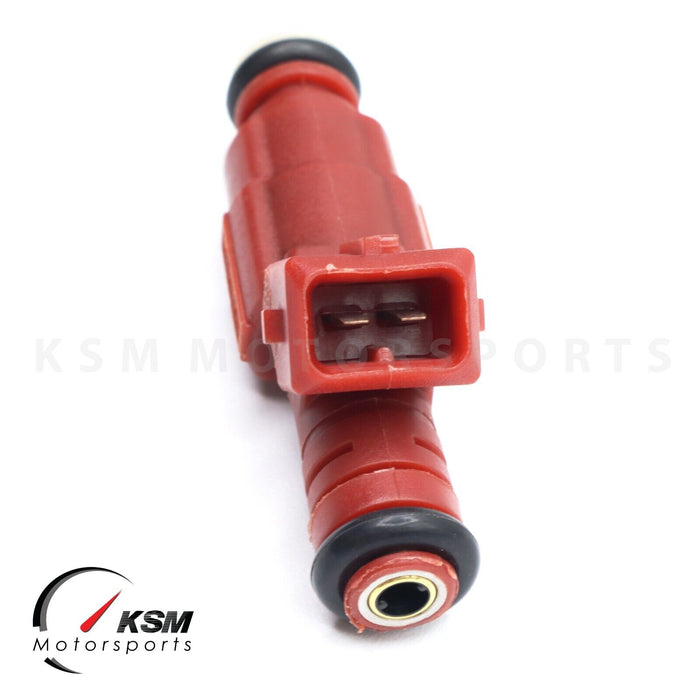

  • Connector Type: Jetronic / Bosch EV1
  • O-Rings Included: Yes, preinstalled

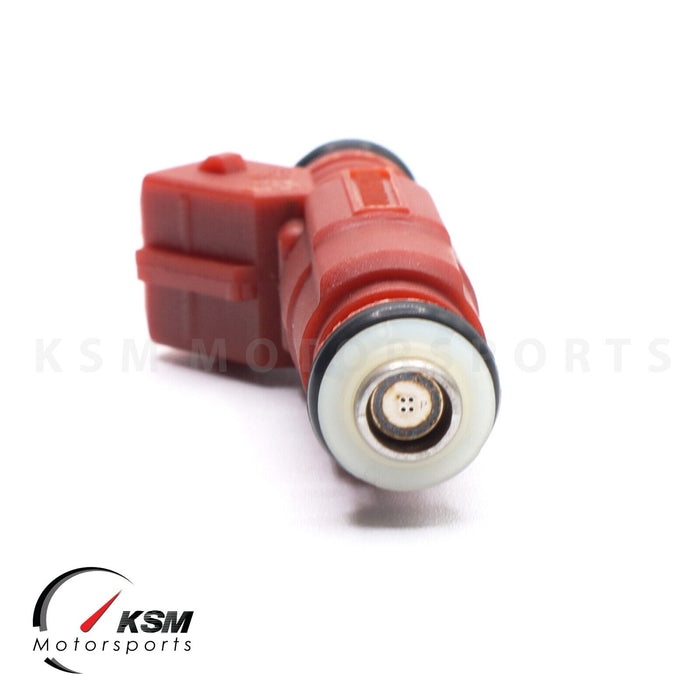

  • Orifice Type: 4 holes Disc
  • Spray Pattern: 15 Degree Spray Cone
  • Filter Design: Basket filter design at inlet
  • Injector Design: Metal & composite plastic
Technical data
  • Coil Resistance: Approx.12 Ohms / High Impedance
  • Static Flow Rate: 30 lb/hr = 315cc/min @ 43.5PSI ( 300kPa )
  • Gain: 0.12ms/MG
  • Offset: 0.055ms
  • Turn on time @ 14VDC: 1.14ms
  • Turn off time: 0.85ms @ 300KPa
  • Amperage: 1.0 Amps
  • Pressure: Min 30PSIG/ Max 100PSIG

Dimensions

  • Length: 3" (74mm)
  • Diameter: 16mm
  • O-Ring Diameter: 14.5mm

Application

These High Impedance (Approx.12 ohms) performance injectors will fit all of the following models:

  • Chevy Corvette and Camaro V8's
  • Pontiac Firebird and TransAm V8's
  • 1986-1995 Ford Mustang GT, LX and Cobra 5.0L
  • 1996-2004 Ford Mustang GT
The following models must change injector plugs, we will include EV1 plugs for free after receiving a note in the checkout.
  • 1999/2001 Ford Mustang Cobra
  • 2003-2004 Ford Mustang Cobra
  • 2005-2012 Ford Mustang
Important Note: Please use part numbers and picture to verify application is correct for your needs.
