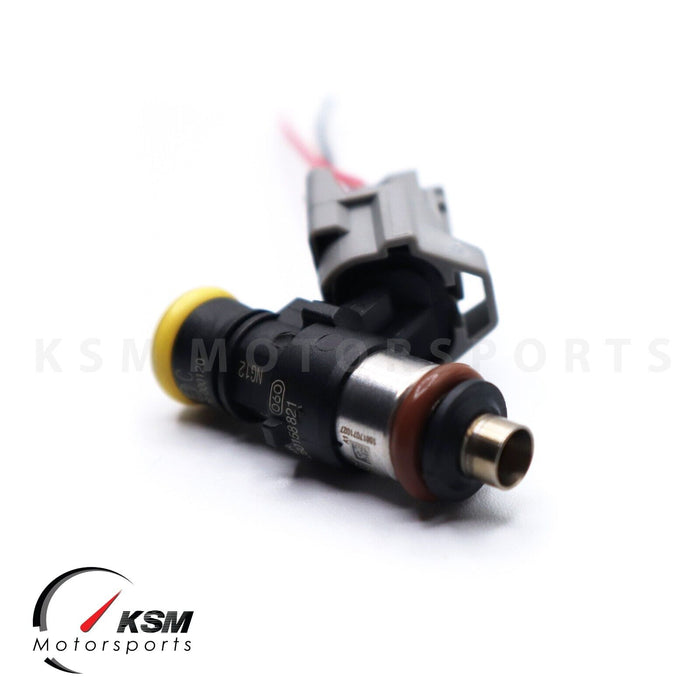

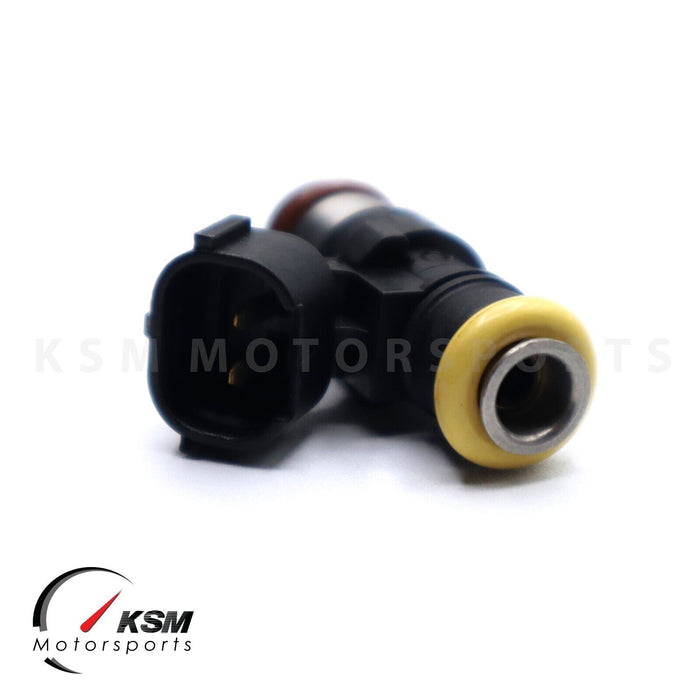

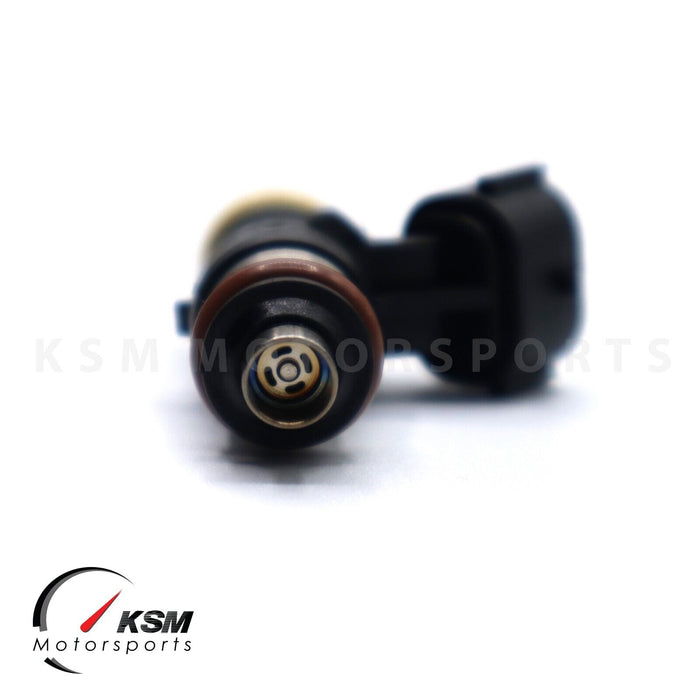

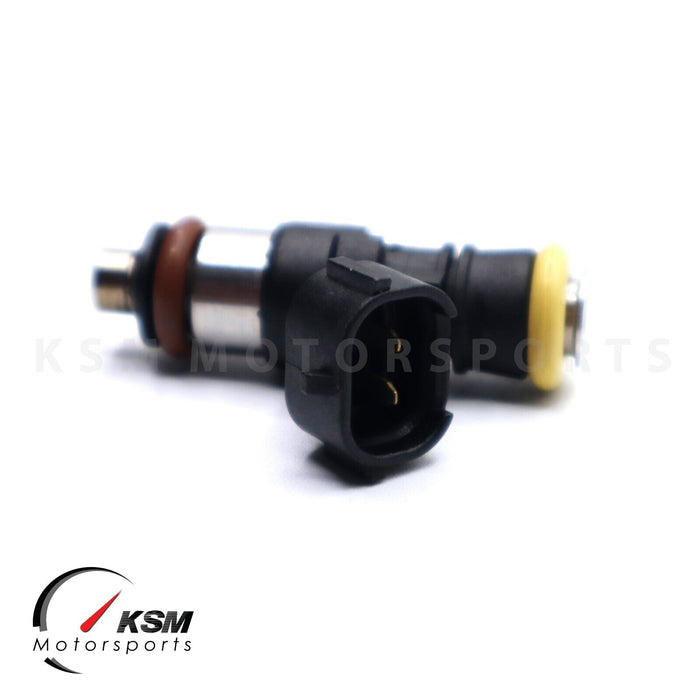

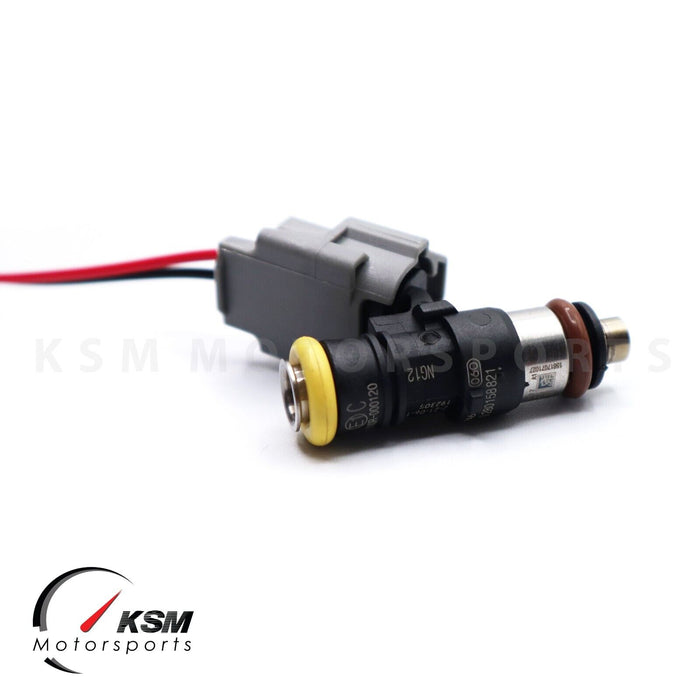

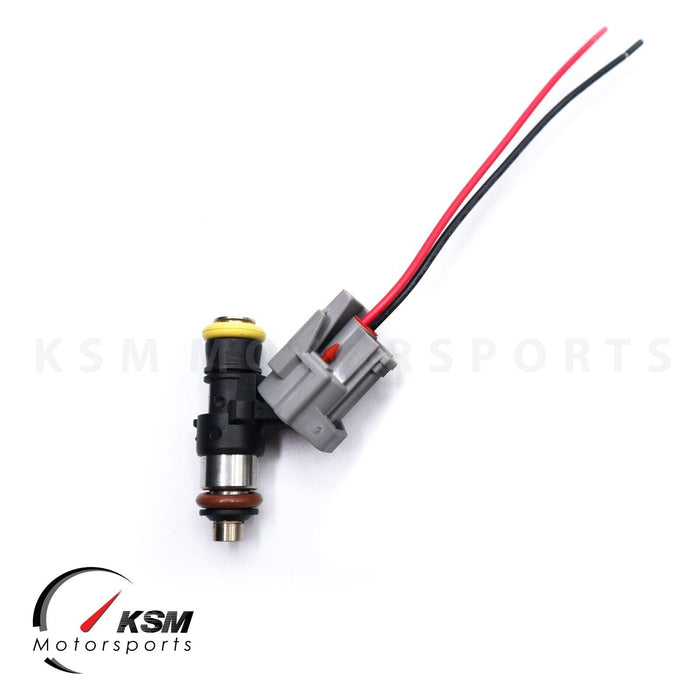

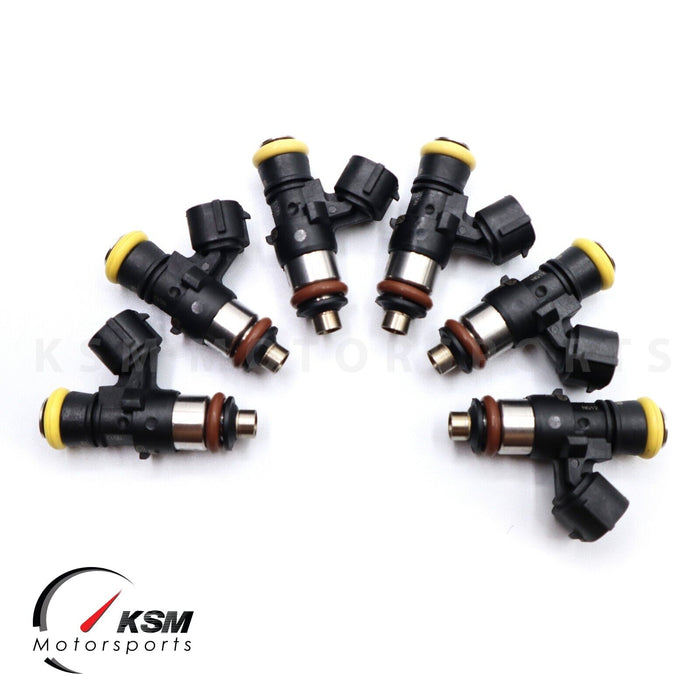

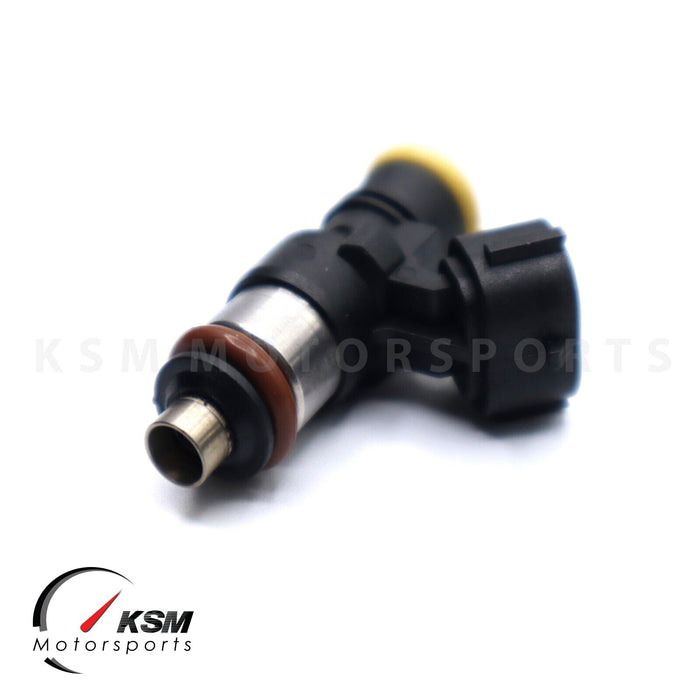

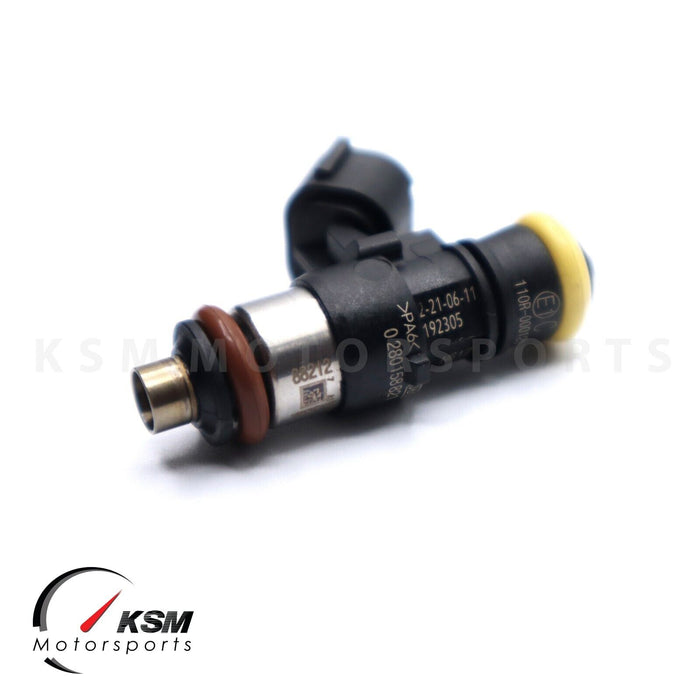

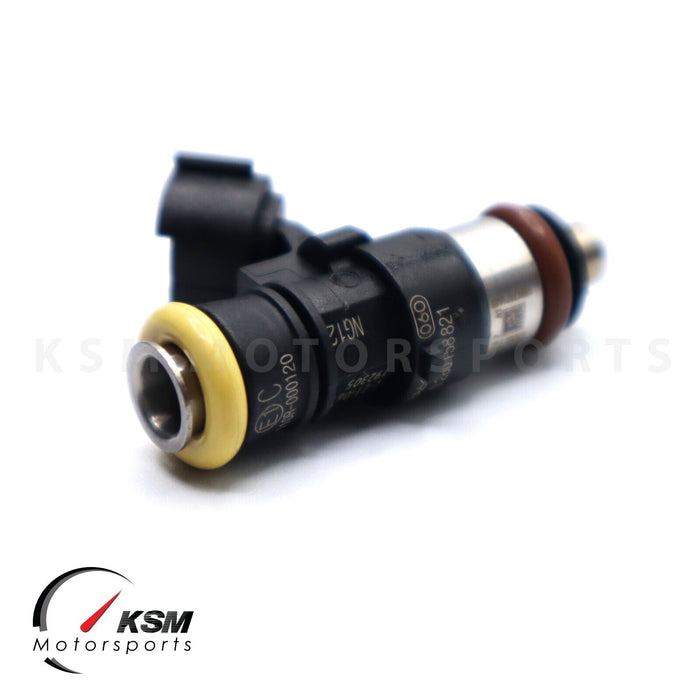

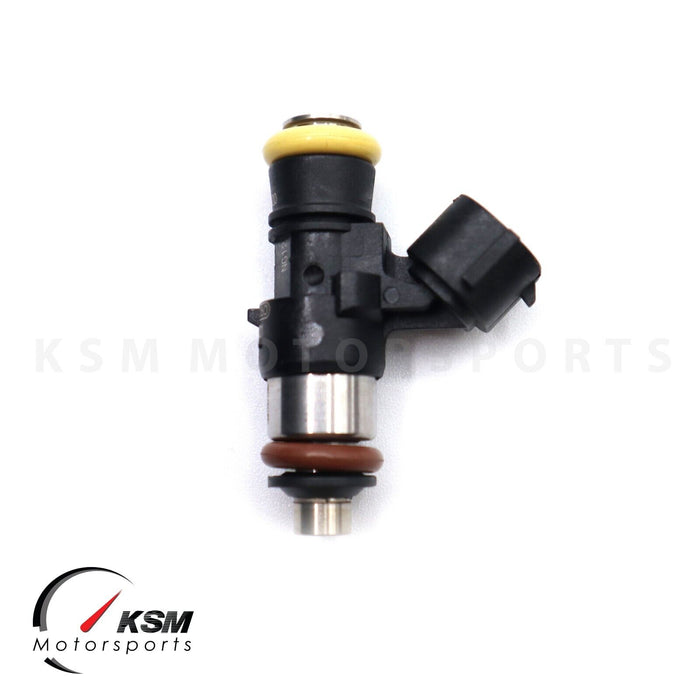

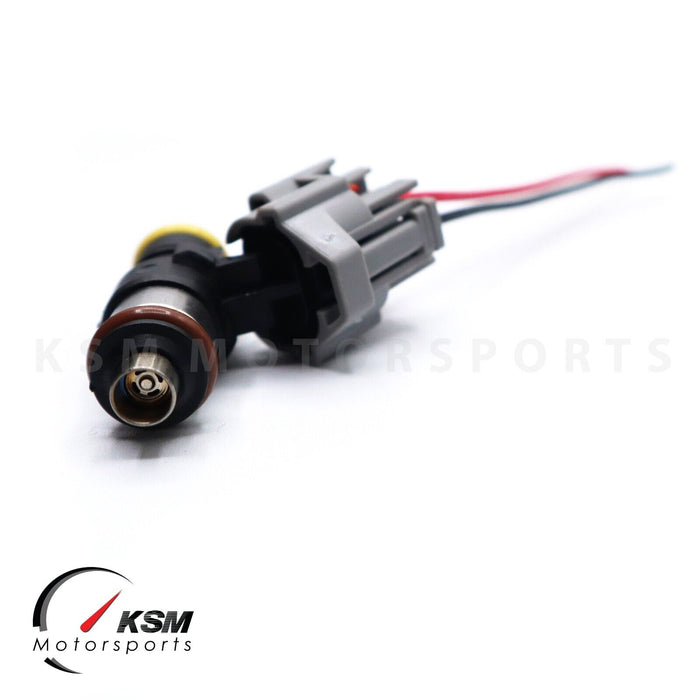

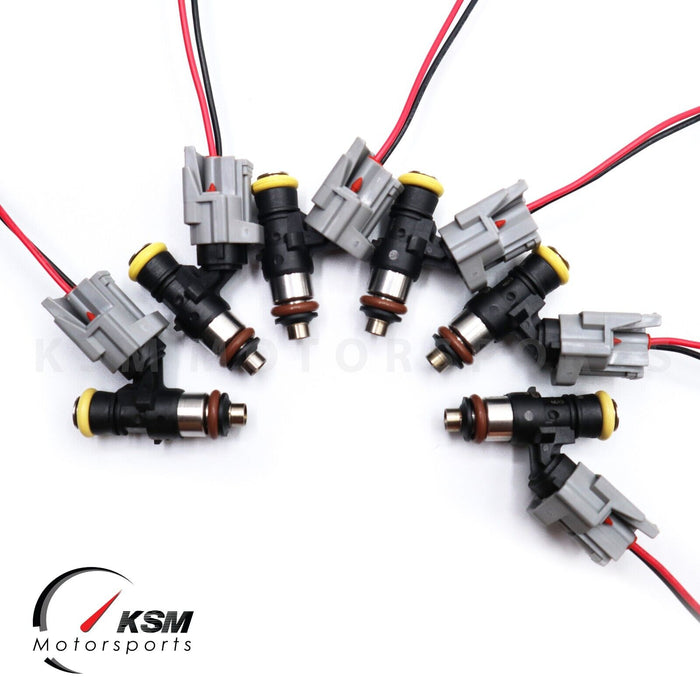

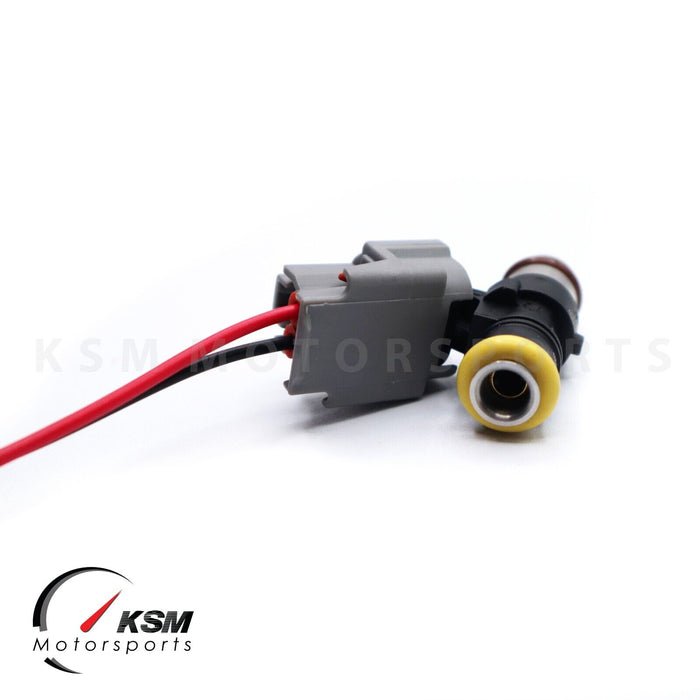

6 x Gas Fuel Injectors CNG Fuel Type 210lb 2200cc fit BOSCH NGI-2-K 0280158821

$297.00
6 x Gas Fuel Injectors CNG Fuel Type 210lb 2200cc fit BOSCH NGI-2-K 0280158821

Specs
  • Quantity : 6 Fuel injectors
  • Replacement for 0280158821, NGI-2-K
  • Other part number: ID2000, 0280158843
  • Static Flow Rate @ 43.5 PSI ( 300kPa ) w/Gas: 2200 cc/min = 210 lb/hr
  • Static Flow Rate @ 58 PSI ( 400kPa ) w/Gas: 2550 cc/min = 240 lb/hr
  • Static Flow Rate @ 78.5 PSI ( 500kPa ) w/Gas: 2865 cc/min = 273 lb/hr
  • Static Flow Rate @ 88 PSI ( 600kPa ) w/Gas: 3155 cc/min = 300 lb/hr
  • Static Flow Rate @ 101.5PSI ( 700kPa ) w/Gas: 3350 cc/min = 320 lb/hr
  • Acceptable Fuels: Gas/Petrol, alcohol/methanol, E85, CNG
  • Unacceptable Fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels
  • Dead Time: 0.45ms at 14 volts
  • Coil Resistance: 9.1 Ohms / High Impedance
  • Leak, flow, pressure, OHM, spray tested using ASNU machines.
  • Robust design
                  Fitment details:
                  • Injector Length: O-ring to O-ring 37.5 mm
                  • Injector Length: top to bottom 2.0 inches / 50.8mm
                  • Injector Body Diameter: 16mm
                  • O-Ring Diameter: 14.5mm Viton

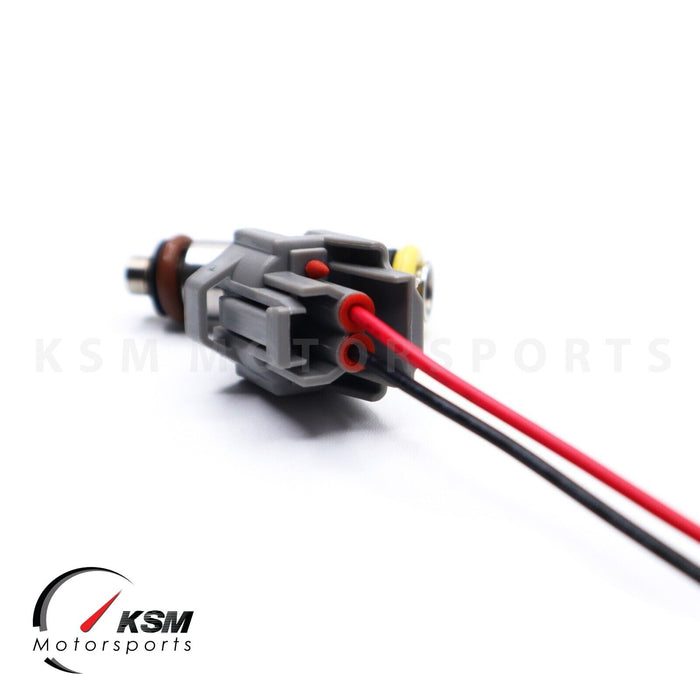

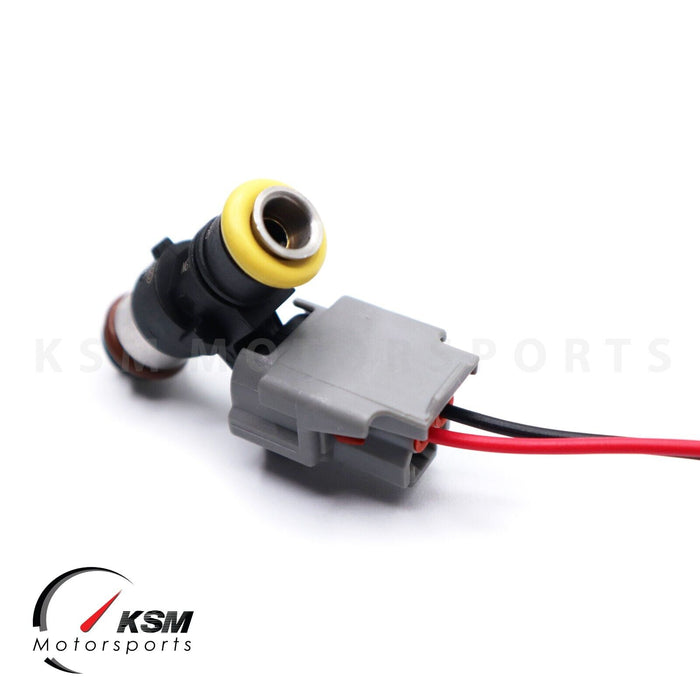

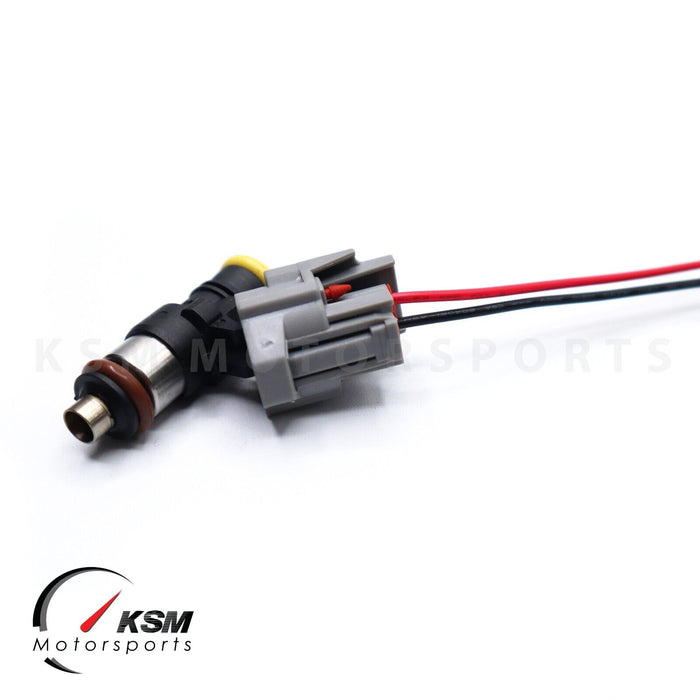

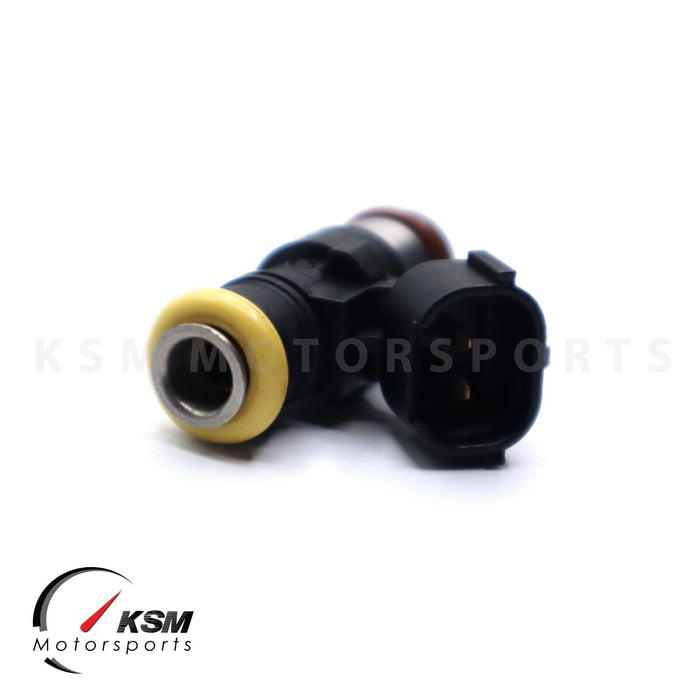

                  • Connector: Denso
